Product Details
＋

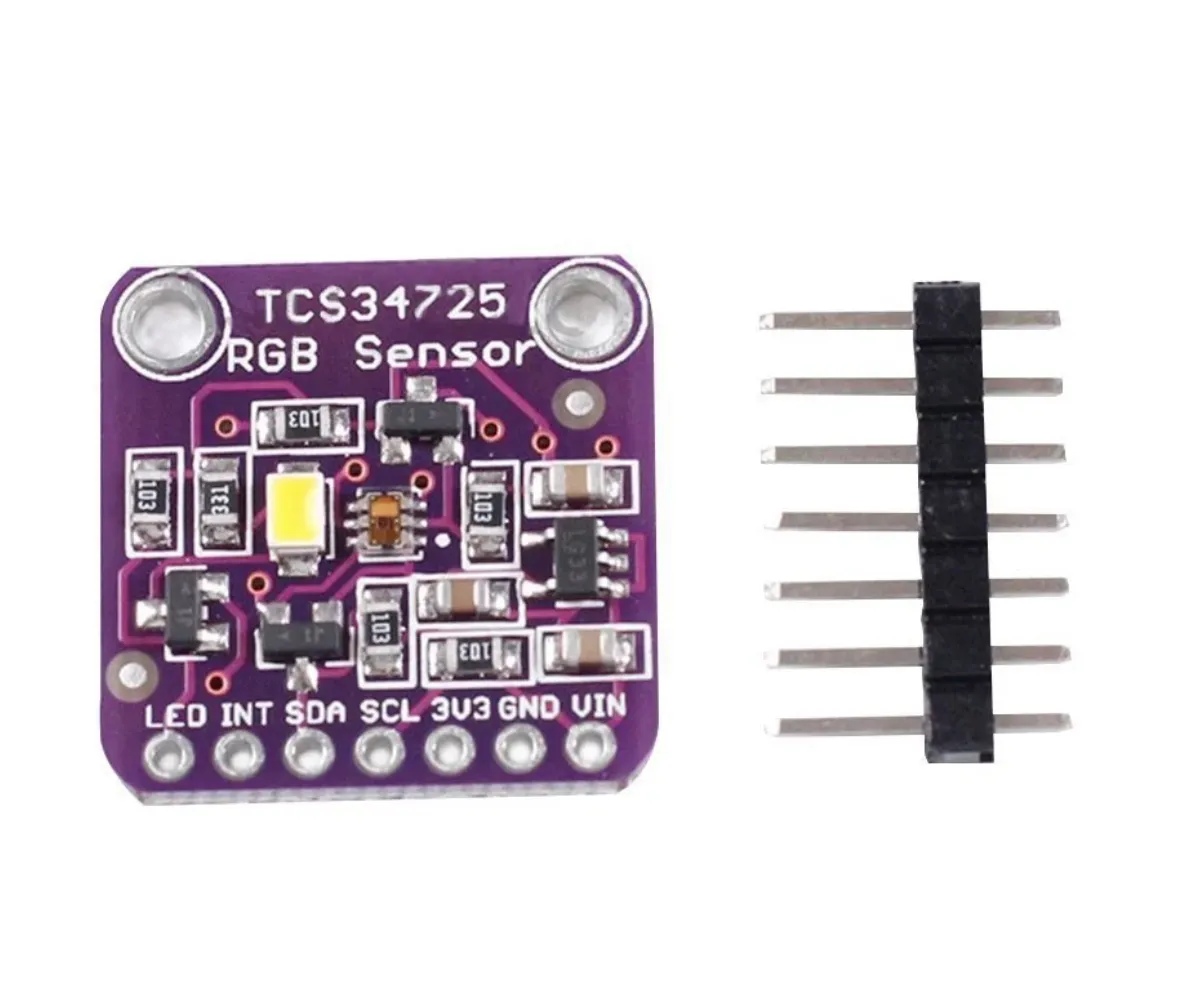

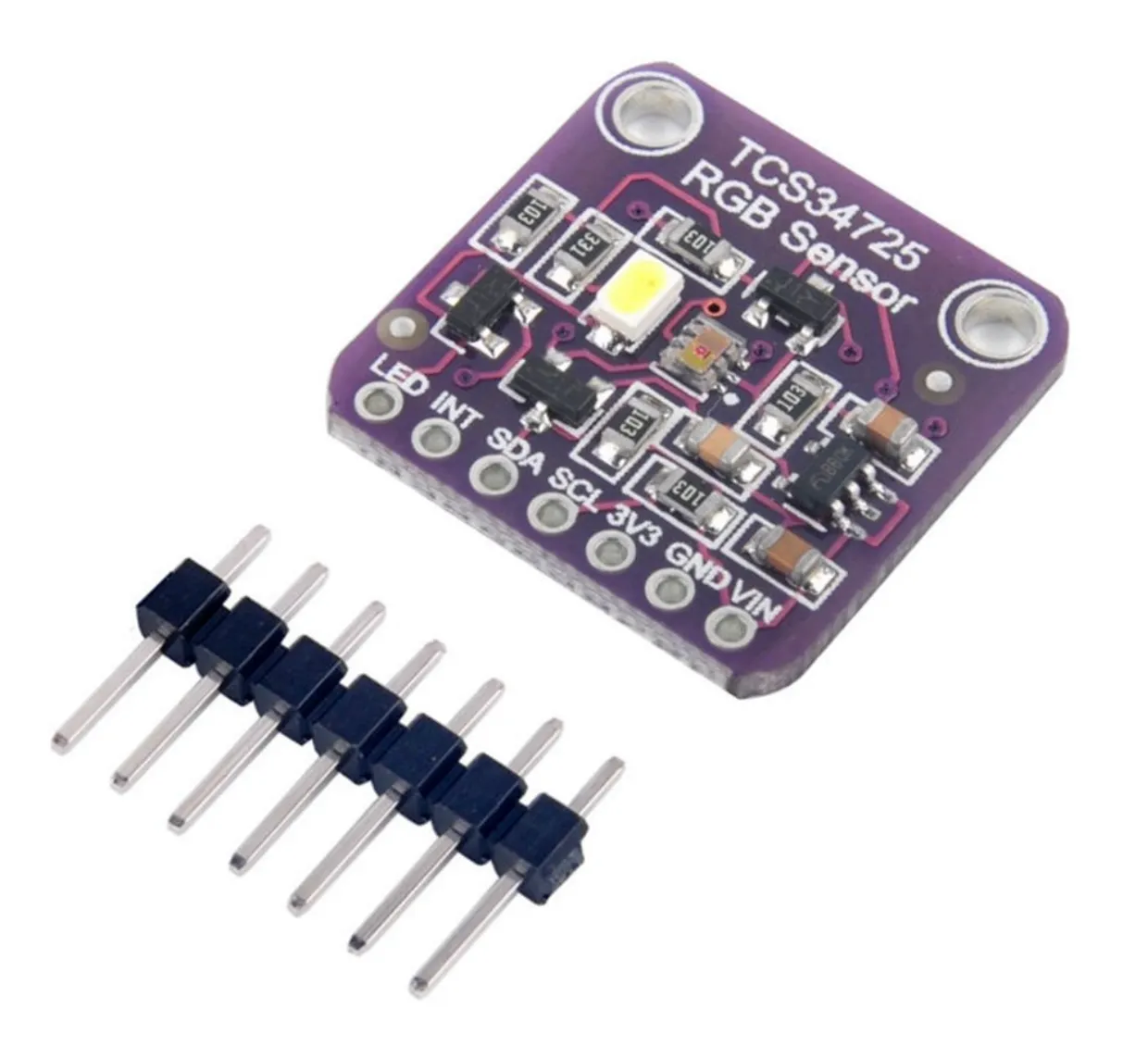

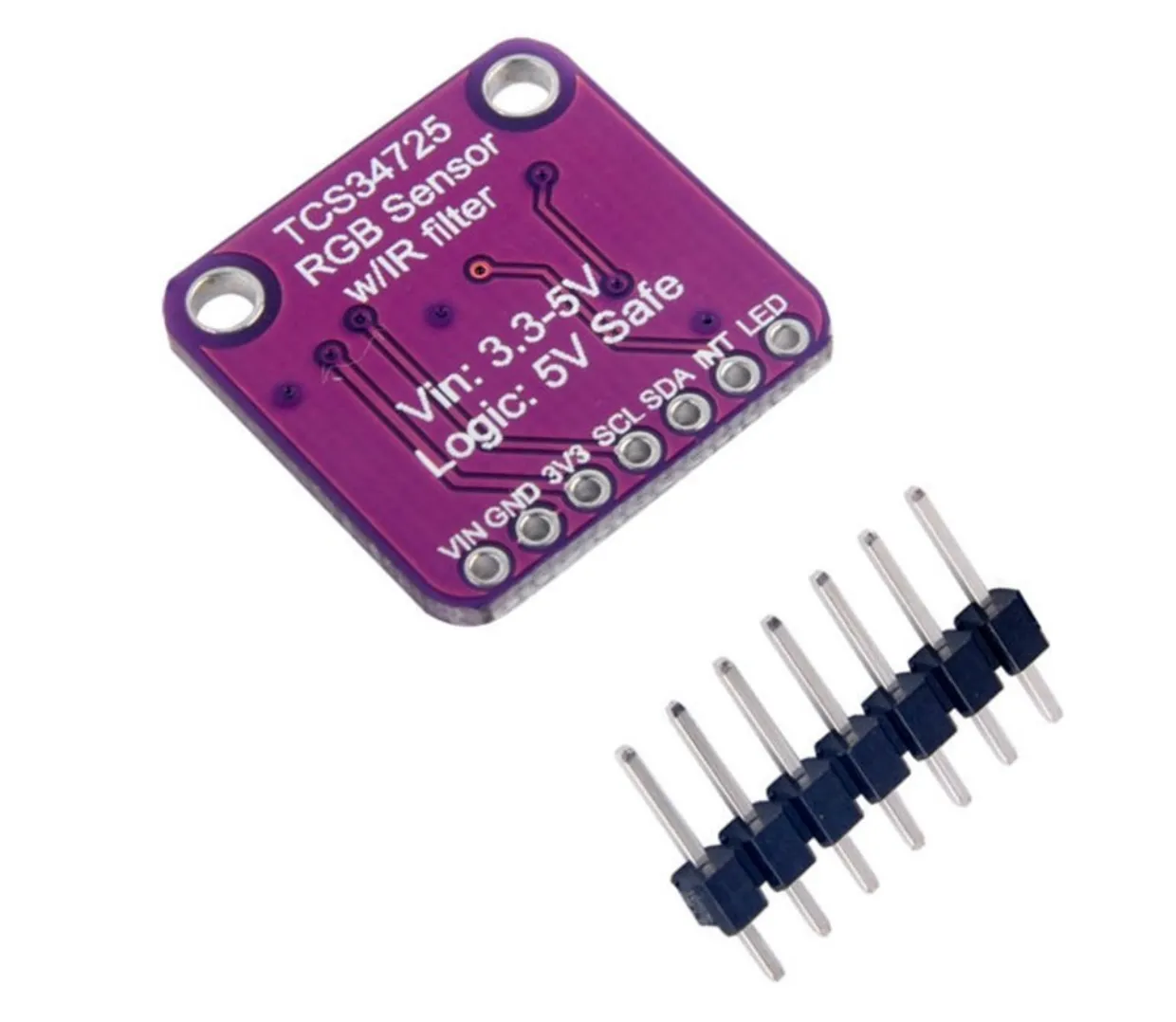

The CJMCU-34725 TCS34725 Color Sensor RGB Module provides digital return values for red, green, blue (RGB), and bright light sensing digital Mingguang induction return value. Color-sensitive photodiode integrated cut and localized infrared shading filter, to minimize the incident infrared spectrum components.
Features :
- The TCS3472 device provides digital return values for red, green, blue (RGB), and bright light sensing
- Color-sensitive photodiode integrated cut and localized infrared shading filter, to minimize the incident infrared spectrum components, so that color management is more accurate.
- The high sensitivity.
- Wide dynamic range.
- IR shading filters make the TCS3472 ideal for color-sensitive component solutions under varying light conditions and through attenuating materials.
Specification:
| Model |
TCS34725 |
| Operating Voltage (VDC) |
3.3 |
| Supply Voltage(VDC) |
3.3 to 5 |
| PCB Thickness(mm) |
1.7 |
| Length (mm) |
20.5 |
| Width (mm) |
20.5 |
| Height (mm) |
3 |
| Weight (gm) |
1 (approx) |
| Shipment Weight |
0.01 kg |
| Shipment Dimensions |
3 × 3 × 1 cm |
